概述 | Summary |
額定功率:185~1600kW | Rate power: 185~1600kW |
額定電壓:3kV、6kV、10kV | Rate voltage:3kV、6kV、10kV |
機座號:355~560 | Frame size: 355~560 |
極數:2~8極 | Poles: 2~8p |
防護等級:IP55 | Protection degree: IP55 |
冷卻方式:IC411 | Cooling method: IC411 |
能效等級:GB30254-2013 2級 (≥355kW可享受 惠民產品補貼) | Efficiency class: GB30254-2013 grade 2 (≥355kW with state subsidies) |
結構特點 Structural characteristics

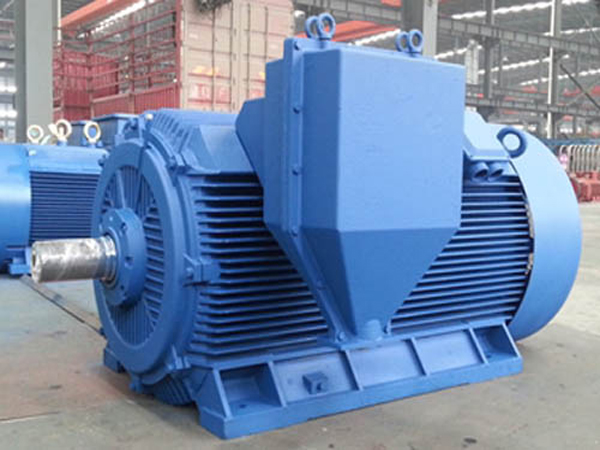

Y2緊湊型高壓高效系列電機采用高強度鑄鐵結構,定子采用F級絕緣真空壓力浸漬無溶劑工藝處理(VPI),轉子為籠形結構,采用鑄鋁一次成型工藝,也可根據客戶需求生產銅條轉子。該系列產品具有結構緊湊、體積小、可靠性高、造型美觀、噪音低、振動小、使用維護方便等特點,適用于風機、水泵、壓縮機、工程機械、礦山機械等設備。
The Y2 series of high voltage high efficiency compact three phase asychronous motors with high strengh cast iron structure, insulation class F stator made by VPI process, cage structure rotor made by once forming process, or copper strip rotor made by mid-frequency welding process, have the characteristics of high efficiency, compact structure, small volume, high reliability, beautiful apperance, low noise, little vibration, maintenance convenience, and can be applied to fan, pump, compressor, mining machinery, engineering machinery, etc.
該系列產品的外形及安裝尺寸同Y2-355~560 6kV 和 Y2-450~560 10kV系列緊湊型高壓三相異步電動機。
This series motors’ mounting dimension is exactly the same as the mounting dimension of Y2-355~560 6kV and Y2-450~560 10kV series high voltage compact motor.
