概述 | Summary |
額定功率:185~3150kW | Rate power: 185~3150kW |
額定電壓:3kV、6kV | Rate voltage: 3kV, 6kV |
機座號: 355~630 | Frame size: 355~630 |
極數: 2~12極 | Poles: 2~12p |
防護等級:YX 系列:IP23 | Protection degree: YX series: IP23 |
YXKS、YXKK系列:IP55 | YXKS、YXKK series: IP55 |
冷卻方式:YX 系列:IC01 | Cooling method: YX series: IC401 |
YXKS系列:IC81W | YXKS series: IC81W |
YXKK系列:IC611或IC616 | YXKK series: IC611 or IC616 |
能效等級:GB30254-2013 2級 (≥355kW可享受 惠民產品補貼) | Efficiency class: GB30254-2013 grade 2 (≥355kW with state subsidies) |
結構特點 Structural characteristics

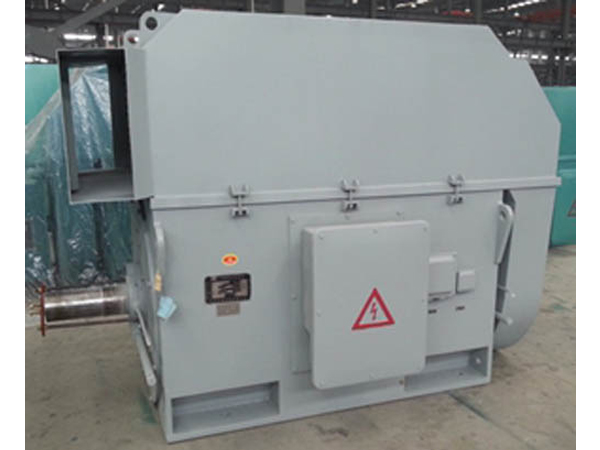

該系列電機采用箱式鋼板結構,拆下冷卻器或防護罩即可觀察和觸及電機內部,便于電機的安裝維護;定轉子鐵芯均采用低損耗高導磁的冷軋硅鋼片;轉子采用籠型鑄鋁轉子,一次成型,也可根據客戶需求生產銅條轉子,提高了運行可靠性;定子采用F級絕緣真空壓力浸漬無溶劑工藝處理(VPI),使電機具有可靠的絕緣性能和防潮、抗沖擊能力;定子和軸承均裝有PT100測溫元件,電機軸承均有不停機注油和排油裝置,提高了電機自身的保護能力和運行效率。
This series motors with box type steel structure, can be observed its interior after removing the cooler or protective cover, and esay to be installed and maintained; Rotor and stator are all made from low loss and high magnetic conductivity silicon steel; The cage structure rotor made by once forming process or copper strip rotor made by mid-frequency welding process, improve the reliability of the motor; Insulation class F stator made by VPI process, ensure the reliability of insulation, moisture-proof and shock resistance; Temperature senor for stator and bearing, non-stop oil filling pipe and oil exit pipe, improve the protection ability and operation efficiency of the motors.
